PEM-1000
Process connection flange DIN, ANSI
Protection Type: IP67
Accuracy: 0,5%
Pressure rating: PN16
Lining: Rubber or PTFE
DVH- Vortex Flow Meter
Measuring range:
3 - 28 ... 549 - 9034 Nm³/h
(20°C, 0 bar rel) air
Connection: ANSI ½ ... 8",
flange DN15 ... DN200, wafer flange
Material: stainless steel, Hastelloy
pmax: PN 16, 40, 100
tmax: 260°C (400°C)
Accuracy:
±1 % of reading gas/vapour
KEC – Thermal Energy Flow meter
Measuring Range:
7 - 3440 Nm³/h air max. 224 Nm/s
Accuracy: ±1,5 % of reading
pmax: 100 bar
tmax: 180°C
Connection: G ½ ... G 2 male; ½" ... 2" NPT male
Material: Sensor- st-steel 1.4571, glass
ANU Pitot Tube – Differential Pressure
Measuring Range:
7 - 3440 Nm³/h air max. 224 Nm/s
Accuracy: ±1,5 % of reading
pmax: 100 bar
tmax: 180°C
Connection: G ½ ... G 2 male; ½" ... 2" NPT male
Material: Sensor- st-steel 1.4571, glass

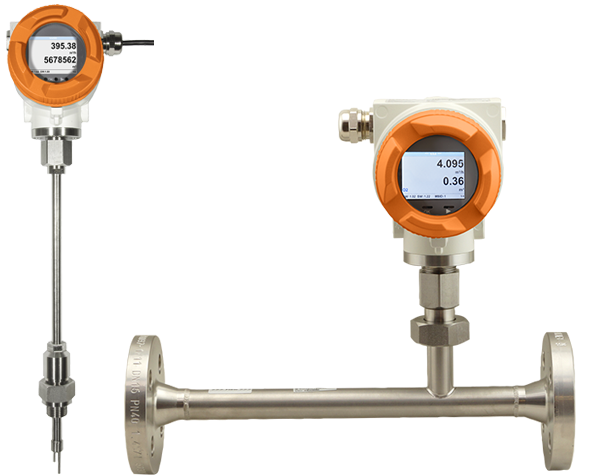

Air/Gas/Steam Flowmeters
Pipe diameter range 25 mm to 1500 mm
Temperature range for sensors -20 °C to +135 °C
Protection Type: IP 66
Pressure Max: range1 bar
Flow velocities: 0.1 m/s to 75 m/s
Other Flowmeters
Switching range: 300 - 3600 m
Connection: G ⅜ ,G 2, ⅜ <br />
, flange DN10 ... DN50,<br />
weld-on flange DN40 ... DN500<br />
<i class="fas fa-check-circle"></i>Material: brass, stainless steel, PVC<br />
pmax: PN16<br />
tmax: 100°C<br />
<i class="fas fa-check-circle"></i>Accuracy: ±3 ... ±5 % of full scale</p>
NUS - Ultrasonic Level
>Accuracy: depends on flow channel / weir
Power supply: 12-36 VDC, 2wire
Output: 4-20 mA, relay
LCD- indication and programming unit
Pmax: 3 bar abs
Tmax:90°C
Flange DN80, 125, 150, ANSI 3",5",6
NWS - Vibration Switch
Contact: 1 electronic switch
Connection:
G ¾, G1 male thread, ¾" NPT, 1" NPT male thread,
Tri-Clamp® DIN 32676, hygenic DIN 11851,
DIN-flange DN25, DN50, ANSI-flange 1", 2"
Material: stainless steel 1.4404
pmax: 45 bar
tmax: 130°C
NGM- Guided Wave Rader Rod Probe
Measuring range: liquids up
to 20 m
Connection: G ¾, ¾" NPT
male thread,
Material connection: stainless
steel, PTFE
Pressure range: -1
... +40 bar
Temperature range: -50
... +250°C
Accuracy: 0.03 % of reading
NGS- Dual Magnet Float Level Switch
Minimal signalization range: 350mm ±15%
Max. medium temperature: 85°C
Max. pressure: 0,35 MPa
Power supply: 250V AC-50/60Hz
Protection type: IP68
Cable length: 10 or 20 m
Float material: Copolymer polypropylene
