Level

We found 11 products for you
...

MM-Float Transducer-Reed Chain

Measuring length: max. 6 m
Connection: R ⅜ ... R 2, DIN-flange DN40 ... DN125, ASME 1½" ... 4"
Material: stainless steel, PVC, PPH, PTFE
pmax: 30 bar
tmax: 130°C
Accuracy: 0.5 % for L = 2 m


...

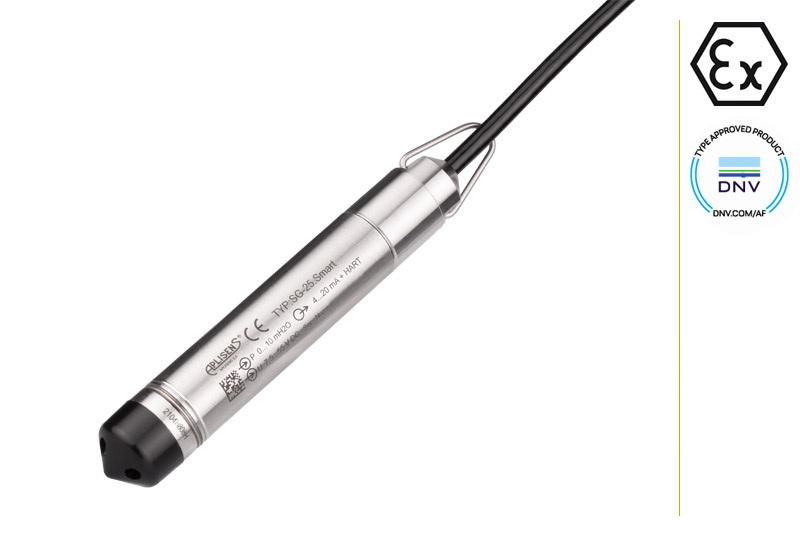

 APLISENS SGE-25 Hydrostatic Level

Measurnig range:
From1 up to 500 mh2O
Output signal: 4….20 mA
Accuracy: 0,2%
Material: Hastelloy/316Lss diaphram
Marine certificate DNV GL

...

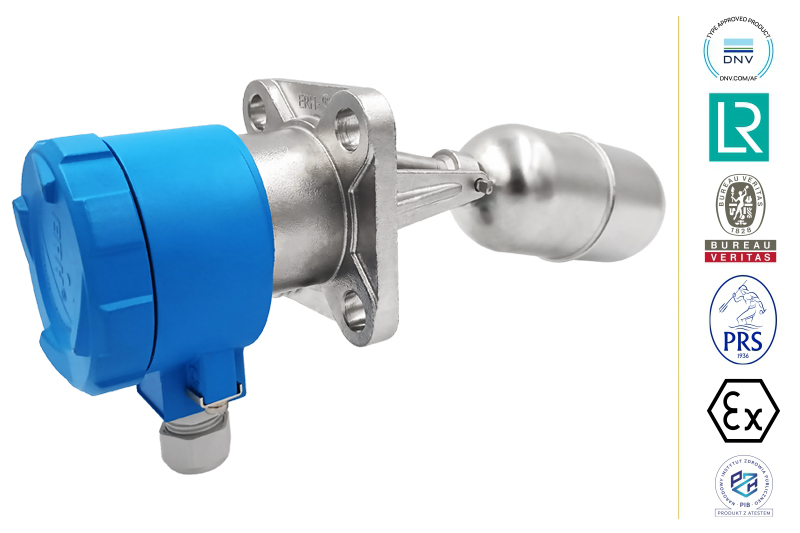

ERH- Level switch

 Explosion proof version
 Housing protection IP66/68
 pressure 40bar
 Marine certificates (DNV-GL, LR, BV, PRS)

...

JUMO NESOS R03 LS

Density: 700 to 1400 kg/m3
Temperature: --30 to +150 °C
Pressure range: -1 to +6 bar

...

NMT -Magnetostrictive Level Meters

Measuring length: 300 - 4000 mm
Connection: G 2, 2" NPT male thread
Material: stainless steel
pmax: PN10
tmax: 70°C
Accuracy: ±1 mm
Output: 4 - 20 mA

...

NES - Conductive Level

Contact: 5 contacts via relay
Connection : G ½, G 1½ male Theard
Material: stanless-steel
Hastelloy®,titanium
Pmax: 30 bar
Tmax:150°C
For conductive liquids (>20 μS/cm)

...

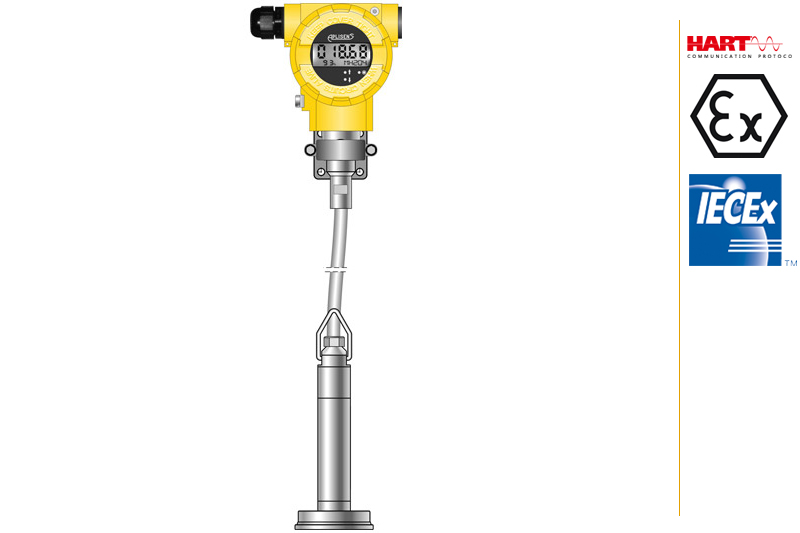

APC 2000 ALW/L Hydrostatic Level

Measuring range :  From 200 Up to 3000 mmH2O
 (Up to 20m APC - 2000 ALW/L)
Output Signal :  4 - 20 mA + HART
Intrinsic safety and explosion proof certificates
Accuracy : 0.16 %
Version with Local display

...

NGS- Dual Magnet Float Level Switch

Minimal signalization range: 350mm ±15%
Max. medium temperature: 85°C
Max. pressure: 0,35 MPa
Power supply: 250V AC-50/60Hz
Protection type: IP68
Cable length: 10 or 20 m
Float material: Copolymer polypropylene

...

NGM- Guided Wave Rader Rod Probe

Measuring range: liquids up
to 20 m
Connection: G ¾, ¾" NPT
 male thread,
Material connection: stainless
steel, PTFE
Pressure range: -1
 ... +40 bar
Temperature range: -50
 ... +250°C
Accuracy: 0.03 % of reading

...

NWS - Vibration Switch

Contact: 1 electronic switch
Connection:
G ¾, G1 male thread, ¾" NPT, 1" NPT male thread,
Tri-Clamp® DIN 32676, hygenic DIN 11851,
DIN-flange DN25, DN50, ANSI-flange 1", 2"
Material: stainless steel 1.4404
pmax: 45 bar
tmax: 130°C

...

NUS - Ultrasonic Level

>Accuracy: depends on flow channel / weir
Power supply: 12-36 VDC, 2wire
Output: 4-20 mA, relay
LCD- indication and programming unit
Pmax: 3 bar abs
Tmax:90°C
 Flange DN80, 125, 150, ANSI 3",5",6
